Bing carburettor panel 8

Motor and attachments

Carburettor (parts selection)

Table 8

Float housing cover without swab

391600901

€12.50*

Spring clip

51540

€7.90*

Float cpl.

161600902

€7.80*

Retaining plate for nozzle needle

161600915

€2.40*

Float seal ring

161600912

€1.00*

Cover plate for starter carburettor cpl.

161601916S

€11.80*

Adjustable main jet, short version.

253503009

€9.90*

Slider spring

161600913

€1.50*

Carburettor adjusting screw w. nut

161600901S

€3.40*

Nozzle needle 46-042, 33mm

161601904

€5.80*

Push pin for starter flap

161601924

€2.00*

Gas slide 22-140-11 Start carburettor

161601905

€9.60*

Alternative Products

Gas slide 22140-8

Throttle slide 22140-8 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 22, 24, 28, 29, 31, 33, 34, 36 Carburettor 1/12: 27, 33, 34, 37, 51, 52, 59, 66, 74, 84, 90, 98, 115, 116, 117, 118, 127, 128 Carburettor 1/13: 1, 2 Carburettor 1/8: 25, 28, 30, 31, 35, 38 Carburettor 1/9.5: 53, 54, 56 Carburettor 1/10: 7, 8, 9, 10, 12, 13, 16, 18, 23, 24, 25, 26, 28, 42, 53, 70 Carburettor 1/11: 15

€10.80*

Adjusting screw f. Start carburettor incl. nut

161601901S

€3.20*

Float housing cover for swivel connection

291600901

€19.80*

Main nozzle

161600910V

€17.50*

Details

Seal M8

100080012

€0.50*

Seal M8

100080012

€0.50*

Sealing ring for needle nozzle

161600917

€0.60*

Needle nozzle 4511

45111V

€6.40*

Details

Clamping spring for starter flap

161600925

€1.00*

Screws for cover plate/float housing (pair)

161600923S

€2.00*

Screws for cover plate/float housing (pair)

161600923S

€2.00*

Screws for cover plate/float housing (pair)

161600923S

€2.00*

Screws for cover plate/float housing (pair)

161600923S

€2.00*

Cover gasket for starter carburettor

161600927

€1.20*

Start slider

161600926

€2.80*

Product

Unit price

Float housing cover without swab

€12.50*

Spring clip

€7.90*

Float cpl.

€7.80*

Retaining plate for nozzle needle

€2.40*

Float seal ring

€1.00*

Cover plate for starter carburettor cpl.

€11.80*

Adjustable main jet, short version.

€9.90*

Slider spring

€1.50*

Carburettor adjusting screw w. nut

€3.40*

Nozzle needle 46-042, 33mm

€5.80*

Push pin for starter flap

€2.00*

Gas slide 22-140-11 Start carburettor

€9.60*

Gas slide 22140-8

€10.80*

Adjusting screw f. Start carburettor incl. nut

€3.20*

Float housing cover for swivel connection

€19.80*

Main nozzle

€17.50*

Details

Seal M8

€0.50*

Sealing ring for needle nozzle

€0.60*

Needle nozzle 4511

€6.40*

Details

Clamping spring for starter flap

€1.00*

Screws for cover plate/float housing (pair)

€2.00*

Cover gasket for starter carburettor

€1.20*

Start slider

€2.80*

Einstellwerte:

Modell	Vergaser	Nadeldüse	Nadelpos.	Düse	Gasschieber	Schwimmerdeckel
DKW Hummel	1/9/15	2.15	3	HD 52	22140-8	ohne Tupfer
DKW Hummel	1/9/17	2.17	2	HD 50	22141-11	ohne Tupfer
DKW Hummel	1/9/18	2.17	2	HD 50	22141-11	ohne Tupfer
DKW Hummel	1/9/29	2.15	3	HD 56	22140-8	ohne Tupfer
DKW Hobby	1/9/33	2.15	2	HD 46	22140-8	ohne Tupfer
DKW Hummel Export	1/12/68	2.17	3	HD 60	22140-12	ohne Tupfer
DKW TS Express	1/12/54	2.15	2	HD 60	22140-12	ohne Tupfer
DKW Hummel Super/Vicky	1/12/114	2.17	2	HD 60	22140-12	ohne Tupfer
Zweirad Union Typ 115	1/12/128				22140	ohne Tupfer.
Zündapp Combinette 405,422	1/12/51	2.15	2	HD 54	22140-8	Schwenkanschl.

Filter

Bing
Moped-Ersatzteile
NSU-Quickly

2.10
2.12
2.15
2.17
2.20
2.22
50
52
54
56
58
60
61
62
64
66
68
70
72
76
78
1717

Minimum €

–

Maximum €

Adjustable main jet, short version.

Adjustable main jet for Bing carburettor short

€9.90*

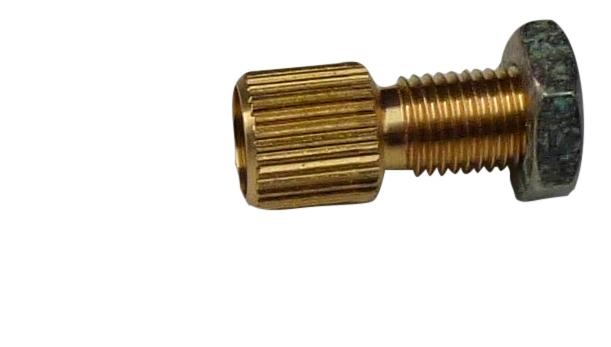

Adjusting screw f. Start carburettor incl. nut

suitable e.g. for: Carburettor 1/8: 2, 6, 8, 9, 10, 13, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 29, 30, 47, 50A, 401, 402, 404, 405, 406 Carburettor 1/14: 56, 58, 81, 85, 99, 150, 159, 173, 174 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 62, 63, 67, 68 Carburettor 1/12: 27, 29, 33, 34, 37, 41, 50, 51, 52, 54, 59, 60, 61, 66, 68, 74, 76, 77, 78, 80, 84, 85, 87, 100, 110, 114, 125, 128, 131, 132, 212, 214, 228, 229, 237, 241, 255, 260, 276, 337 Carburettor 1/15: 4, 7, 12, 14, 15, 16, 17, 18, 23, 36, 57A, 58A, 60A, 63A, 65A, 69 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 18, 23, 24, 25, 26, 28, 40, 41, 42, 43, 44, 45, 48, 49, 50, 51, 52, 53, 55, 58, 70, 77, 110, 401, 402 Carburettor 1/13: 1, 2, 3 Carburettor 1/11: 15, 402, 405

€3.20*

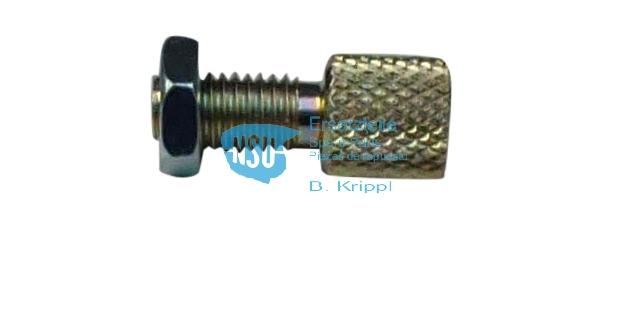

Carburettor adjusting screw w. nut

Adjusting screw for idle throttle - Carburettor without starting device

€3.40*

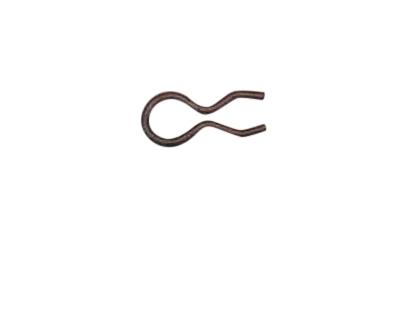

Clamping spring for starter flap

suitable e.g. for Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 30 Carburettor 1/11: 15 Carburettor 1/12: 27, 29, 33, 34, 37, 51, 52, 54, 59, 60, 61, 66, 68, 74, 76, 77, 84, 85, 87, 110, 125, 131 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 62, 63, 67, 68 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 33 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 23, 24, 25, 26, 28, 40, 41, 42, 44, 45, 48, 49, 50, 51, 52, 53, 70

€1.00*

Cover gasket for starter carburettor

Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 22, 26, 28, 30, 47, 50A Carburettor 1/12: 29, 33, 34, 37, 42, 51, 52, 54, 59, 60, 61, 66, 68, 74, 76, 77, 84, 85, 87, 110, 125, 131, 212, 214, 228, 229, 237, 241, 255, 260, 337 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/9.5: 53, 54, 56 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 18, 23, 24, 26, 28, 40, 41, 44, 45, 48, 49, 50, 51, 52, 53, 70, 77, 99, 100, 102A, 102C, 105A, 108, 126B, 126A, 128, 128A, 143, 152, 153, 155, 156 Carburettor 1/11: 15

€1.20*

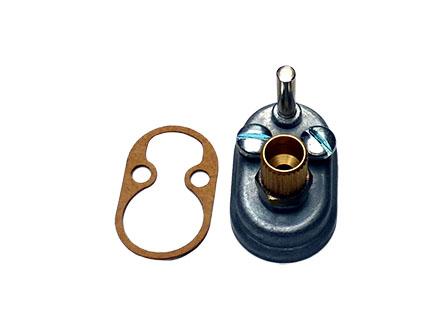

Cover plate for starter carburettor cpl.

Carburettor 1/8: 2, 6, 8, 10, 14, 18, 20, 21, 28, 30, 47 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/12: 27, 29, 33, 34, 37, 51, 52, 54, 59, 61, 66, 68, 74, 76, 78, 84, 85, 110, 125, 131, 212, 214, 228, 229, 237, 241, 337 Carburettor 1/9.5: 53, 54, 56 Carburettor 1/10: 7, 8, 9, 10, 12, 13, 16, 18, 23, 24, 25, 26, 28, 40, 41, 42, 44, 45, 48, 49, 50, 51, 52, 53, 70, 99, 100, 102A, 108, 153, 155, 156 Carburettor 1/11: 15

€11.80*

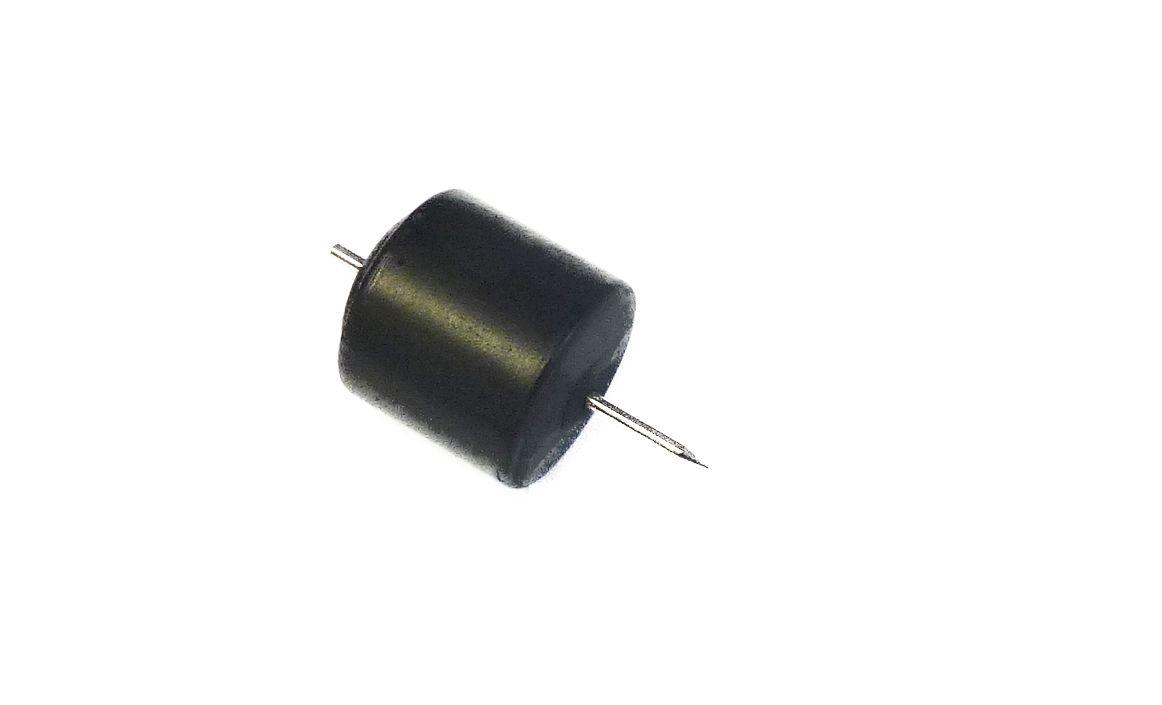

Float cpl.

Carburettor 1/12: 22, 35, 39, 42, 50, 51, 52, 53, 59, 68, 74, 80, 84, 98, 114, 128, 132, 199, 214, 233, 251 Carburettor 1/15: 4, 14, 15, 16, 17, 23 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 67, 68, 76 Carburettor 1/14: 56, 58, 85 Carburettor 1/9/: 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33 Carburettor 1/13: 1, 2, 3 Carburettor 1/8: 13, 28, 30 Carburettor 1/10: 43

€7.80*

Float housing cover for swivel connection

original float cover for Quickly T

€19.80*

Float housing cover without swab

Carburettor 1/9/: 9, 10, 11, 12, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 67, 68 Carburettor 1/12: 51, 52, 59, 68, 74, 84 Carburettor 1/8: 28, 30

€12.50*

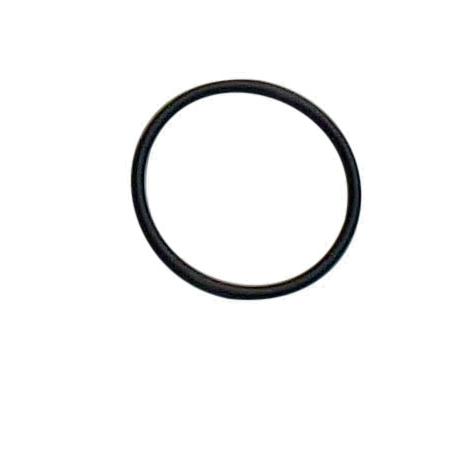

Float seal ring

Use in downstream carburettors: Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 48A, 50A, 51A, 401, 402, 404, 405, 406 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 18, 23, 24, 25, 26, 28, 40, 41, 42, 44, 45, 48, 49, 50, 51, 52, 53, 55, 58, 70, 77, 99, 100, 102C, 102A, 105A, 108, 114A, 126B, 126A, 128, 128A, 131D, 132E, 132D, 135, 143, 152, 153, 155, 156, 159 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/14: 79, 81, 85, 86, 87, 99, 150, 159, 173, 174 Carburettor 1/15: 7, 12, 36, 57A, 58A, 60A, 63A, 65A, 69 Carburettor 1/17: 34, 35, 115A Carburettor 1/16: 59, 60, 63A, 74A, 83A Carburettor 1/12: 27, 29, 33, 34, 37, 40, 54, 60, 61, 66, 76, 77, 78, 85, 87, 100, 110, 125, 131, 255, 260,

€1.00*

Gas slide 22-140-11 Start carburettor

z. e.g. forSachs 501, 503+4 Carburettor 1/9/: 19, 22, 24, 31, 34 Carburettor 1/8: 25, 28, 31 Carburettor 1/9.5: 53, 54, 56 Carburettor 1/12: 74, 90

€9.60*

Insert filter, filter, diameter 52 mm

suitable e.g. for: Carburettor 1/8: 2, 6, 8, 9, 10, 13, 14, 15, 17, 18, 19, 20, 21, 22, 26, 30, 47, 401, 402, 404, 405, 406 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 17, 18, 21, 28, 29, 30, 33, 47, 48A, 49A, 50A, 51A, 55A Carburettor 1/15: 4, 43 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 18, 23, 24, 25, 26, 28, 40, 41, 42, 43, 44, 45, 48, 49, 50, 51, 52, 53, 55, 58, 62, 63, 70, 99, 100, 108, 156 Carburettor 1/12: 27, 29, 33, 34, 37, 50, 51, 52, 54, 55, 59, 60, 61, 64, 66, 68, 71, 72, 73, 74, 77, 78, 84, 85, 87, 88, 89, 100, 103, 105, 106, 107, 108, 109, 110, 119, 125, 129, 131, 133, 199 Carburettor 1/14: 50, 51, 55, 79, 81, 85, 86, 87 Carburettor 1/13: 3, 4, 5 Carburettor 1/9.5: 76 Carburettor 1/11: 15

€7.80*

Main nozzle

Carburettor 1/9/: 9, 10, 11, 12, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33 Carburettor 1/12: 51, 52, 59, 68, 74, 84, 199, 212, 214, 228, 229, 233, 237, 241, 251, 337 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 62, 63, 67, 68, 76 Carburettor 1/16: 56, 59, 69, 70, 79 Carburettor 1/14: 83 Carburettor 1/15: 43 Carburettor 1/17: 37, 41, 64, 65, 76, 101, 180 Carburettor 1/8: 28, 30

€17.50*

Details

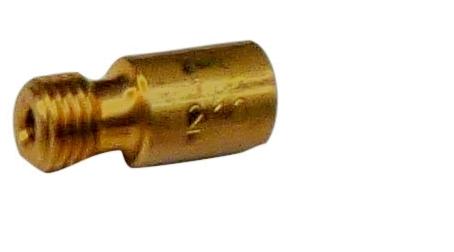

Needle nozzle 4511

suitable e.g. for 2.12 e.g. for Sachs 501/3+4 , Expreß Radexi 2 and 3-speed 2.15 e.g. DKW Hummel, Expreß Radexi, Vicky 1, M50 2.17 e.g. for DKW Hobby, DKW Standard. Express TS, Hummel Super, Victoria Vicky Standard Carburettor 1/8: 2, 6, 8, 9, 10, 13, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 30 Carburettor 1/9/: 1, 2, 3, 4, 6, 7, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 22, 24, 28, 29, 30, 33 Carburettor 1/15: 4, 14, 15, 16, 17, 23, 43 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 62, 63, 67, 68 Carburettor 1/12: 22, 27, 29, 33, 34, 35, 37, 39, 42, 50, 51, 52, 53, 54, 55, 59, 60, 61, 64, 66, 68, 71, 72, 73, 74, 76, 77, 78, 80, 84, 85, 87, 88, 89, 98, 103, 105, 106, 107, 108, 109, 110, 114, 119, 125, 128, 129, 131, 132, 133, 167, 168, 199, 212, 214, 228, 229, 233, 237, 241, 251, 337 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 18, 23, 24, 25, 26, 28, 40, 41, 42, 43, 44, 45, 48, 49, 50, 51, 52, 53, 62, 63, 67, 70 Carburettor 1/13: 1, 2, 4, 5 Carburettor 1/14: 56, 58, 83, 88 Carburettor 1/16: 53, 56, 57, 58, 60, 69, 70, 79 Carburettor 1/8.5: 1, 2, 4, 5, 8, 10, 11 Carburettor 1/11: 15

€6.40*

Details

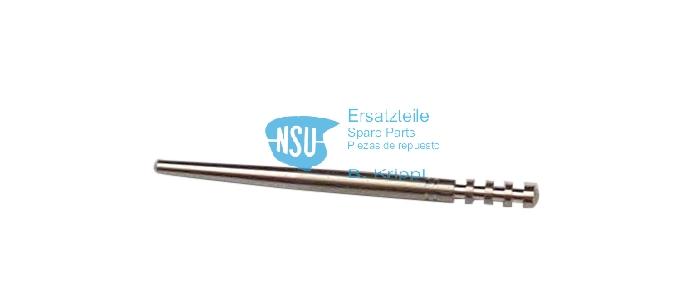

Nozzle needle 46-042, 33mm

for DKW Hummel , Standard, Super, Type 113,115,116 Victoria Vicky, VickyIII, Vicky IV, Tory, Avanti, Nicky, Preciosia Steyr Daimler-Puch MS, MS/A, MV, VSD, VZ, DS 4, DS 50 Fichtel&Sachs Type 501, BKF, 503, 504,505, Sachs 50, 50X, Prima 4SL,5SL,5S Kreidler Amazone, Kreidler Flory MF 12,13,23, Kreidler Mofa MF 2 SR,CL Rex Monaco Zündapp automatic moped 442, 434 Zündapp M 25 Bergsteiger, Zündapp Combinette 246, 257, 405,422,428,429,430 Hercules Saxonette Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 19, 20, 21, 22, 25, 26, 28, 30, 31, 35, 38, 48A, 50A, 51A Carburettor 1/12: 29, 33, 34, 37, 51, 52, 54, 59, 60, 61, 66, 68, 71, 72, 73, 74, 76, 77, 78, 84, 85, 87, 88, 89, 103, 105, 106, 107, 108, 109, 110, 114, 119, 125, 128, 129, 131, 132, 133, 167, 168, 199, 212, 214, 228, 229, 233, 237, 241, 251, 255, 260, 337 Carburettor 1/9.5: 53, 54, 56, 58, 59, 60, 62, 63, 67, 68 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/13: 1, 4, 5 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 23, 24, 25, 26, 28, 41, 42, 43, 44, 45, 48, 49, 50, 51, 52, 53, 62, 63, 67, 70, 77, 99, 100, 102C, 105A, 108, 110, 126B, 126A, 128A, 128, 152 Carburettor 1/15: 4 Carburettor 1/8.5: 1, 2, 4, 5, 8, 11 Carburettor 1/11: 15

€5.80*

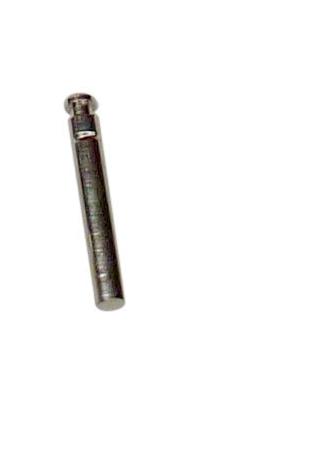

Push pin for starter flap

suitable for: Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 19, 20, 21, 22, 26, 28, 30 Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 67, 68 Carburettor 1/9/: 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33 Carburettor 1/12: 29, 33, 34, 37, 51, 52, 54, 59, 60, 66, 68, 74, 84, 110, 125, 131, 212, 228, 229, 237, 241, 337 Carburettor 1/11: 15 Carburettor 1/10: 8, 9, 11, 12, 13, 18, 23, 24, 25, 26, 28, 40, 41, 44, 45, 48, 49, 50, 51, 52, 53, 70

€2.00*

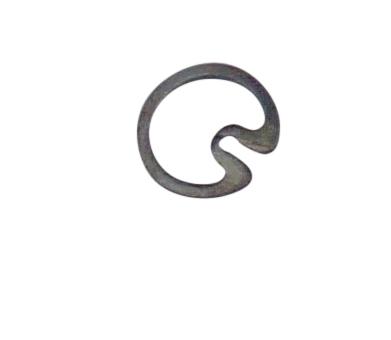

Retaining plate for nozzle needle

For attaching the nozzle needle Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 30, 47, 50A, 401, 402, 404, 405, 406 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/12: 21, 22, 27, 29, 33, 34, 35, 37, 39, 40, 42, 43, 51, 52, 53, 54, 59, 60, 61, 64, 66, 68, 69, 71, 72, 73, 74, 76, 77, 84, 85, 87, 88, 89, 100, 103, 106, 108, 109, 110, 119, 125, 129, 131, 133, 167, 168, 199, 212, 214, 228, 229, 233, 237, 241, 251, 255, 260, 337 Carburettor 1/9.5: 44, 53, 54, 56 Carburettor 1/8.5: 1, 2, 4, 5, 8, 10, 11 Carburettor 1/10: 2, 5, 7, 8, 9, 10, 11, 12, 13, 16, 17, 18, 23, 24, 25, 26, 28, 40, 41, 42, 44, 45, 48, 49, 50, 51, 52, 53, 70, 77, 99, 100, 102A, 102C, 105A, 108, 110, 126B, 126A, 128A, 128, 143, 152, 153, 155, 156 Carburettor 1/11: 4, 5, 11, 15, 301, 302

€2.40*

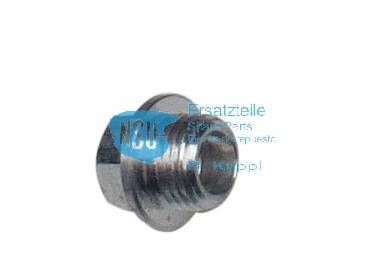

Screw plug

Carburettor 1/12: 22, 35, 39, 42, 50, 51, 52, 53, 55, 59, 64, 68, 71, 72, 73, 74, 80, 84, 88, 89, 98, 103, 105, 106, 107, 108, 109, 114, 119, 128, 129, 132, 133, 167, 199, 212, 214, 228, 229, 233, 237, 241, 251, 337 Carburettor 1/15: 4, 14, 15, 16, 17, 23, 43 Carburettor 1/9/: 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 24, 28, 29, 30, 33 Carburettor 1/9.5: 54, 56, 57, 58, 59, 60, 62, 63, 67, 68, 76 Carburettor 1/14: 56, 58, 83, 85 Carburettor 1/17: 37, 41, 64, 65, 76, 101, 180 Carburettor 1/16: 59, 69, 70, 79 Carburettor 1/10: 43, 62, 63 Carburettor 1/8.5: 1, 2, 4, 5, 8, 10, 11 Carburettor 1/8: 13, 28, 30 Carburettor 1/13: 1, 2, 3, 4, 5

€2.90*

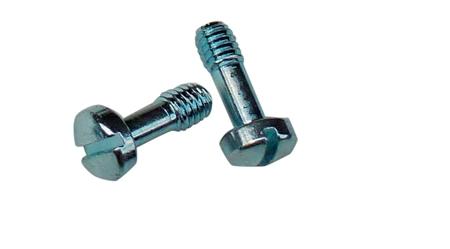

Screws for cover plate/float housing (pair)

for attaching the nozzle needle, Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 30, 47, 50A Carburettor 1/9.5: 53, 54, 56, 57, 58, 59, 60, 62, 63, 67, 68 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/12: 27, 29, 51, 52, 54, 59, 60, 61, 66, 68, 74, 76, 77, 84, 85, 87, 110, 125, 131, 212, 214, 228, 229, 237, 241, 276, 337 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 18, 23, 24, 25, 26, 28, 40, 41, 42, 44, 48, 49, 50, 52, 77, 99, 100, 143, 153, 155, 156

€2.00*

Seal M8

Fibre sealing ring, e.g. for the following carburettors Carburettor 1/9.5: 33 Carburettor 1/10: 77, 99, 100, 102C, 105A, 108, 114A, 126B, 128A, 131D, 132D, 135, 143, 152, 153, 155, 156, 159 Carburettor 1/9/: 9, 10, 11, 12, 14, 15, 17, 18, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/12: 51, 52, 59, 68, 84, 100, 276 Carburettor 1/8: 30, 47, 50A, 401, 402, 404, 405, 406

€0.50*

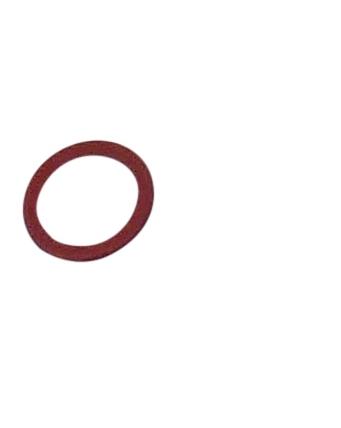

Sealing ring for needle nozzle

€0.60*

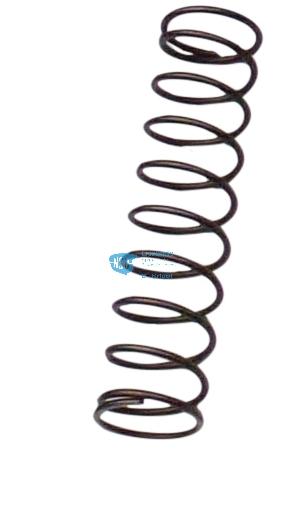

Slider spring

suitable for: Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 29, 30, 47, 50A, 401, 402, 404, 405, 406 Carburettor 1/10: 2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 16, 17, 18, 23, 24, 25, 26, 28, 40, 41, 42, 44, 48, 49, 50, 51, 52, 53, 55, 58, 62, 63, 70, 77, 99, 100, 102A, 102C, 105A, 108, 126A, 126B, 128A, 128, 143, 152, 153, 155, 156, 401, 402 Carburettor 1/11: 4, 5, 11, 12, 15, 301, 302, 401, 402, 405 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 19, 21, 24, 28, 30, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/9.5: 53, 54 Carburettor 1/12: 21, 22, 27, 29, 33, 34, 35, 36, 37, 39, 40, 41, 42, 43, 51, 52, 53, 54, 55, 59, 60, 61, 64, 66, 68, 69, 71, 72, 73, 74, 76, 77, 78, 84, 85, 87, 88, 89, 100, 103, 105, 106, 107, 108, 109, 110, 119, 125, 129, 131, 133, 167, 168, 212, 214, 228, 229, 237, 241, 255, 260, 337 Carburettor 1/8.5: 1, 2, 4, 5, 8, 10, 11

€1.50*

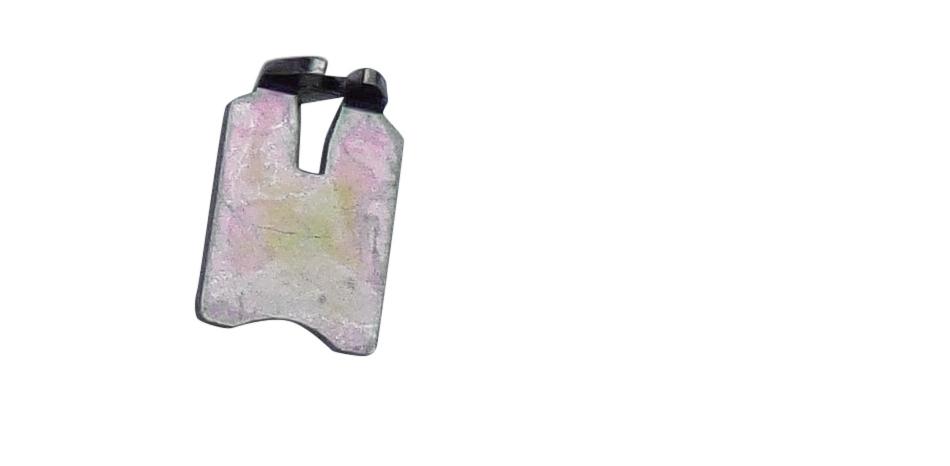

Start slider

for DKW Hummel Vicky Kreidler Flory Kreidler MF 2 Sachs 501 Zündapp Carburettor 1-10-102C Kreidler, 1-10-105A Kreidler, 1-10-126B Kreidler, 1-10-128A Kreidler,1-10-152 Kreidler 1-9-54A Zündapp moped 434 and many others Carburettor 1/8: 2, 6, 8, 9, 10, 14, 15, 17, 18, 19, 20, 21, 22, 26, 28, 30, 47, 50A Carburettor 1/12: 29, 33, 34, 37, 51, 52, 54, 59, 60, 61, 66, 68, 74, 76, 77, 78, 84, 85, 87, 98, 110, 114, 125, 128, 131, 132, 212, 214, 228, 237, 241, 255, 260, 337 Carburettor 1/9/: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 18, 19, 24, 28, 29, 33, 47, 48A, 49A, 50A, 51A, 52A, 53A, 54A, 55A Carburettor 1/9.5: 53, 54, 56 Carburettor 1/10: 7, 8, 9, 10, 11, 12, 13, 16, 23, 24, 25, 26, 28, 40, 41, 42, 44, 45, 48, 49, 50, 51, 52, 53, 70, 77, 99, 102C, 102A, 105A, 126B, 126A, 128, 128A, 143, 152, 155, 156 Carburettor 1/11: 15

€2.80*

Swivel hose connection

Carburettor 1/12: 51, 52, 59, 68, 84, 100, 276 Carburettor 1/9/: 9, 10, 11, 12, 14, 15, 17, 18, 28, 29, 33 Carburettor 1/8: 30, 401, 402, 404, 405, 406

€3.80*
